| GENERAL DATA |
|---|
| | PT-76B |
|---|
| Country of Origin | CIS (formerly USSR) |
|---|
| Role | Light reconnaissance tank |
|---|
| Date Of Introduction | 1952 |
|---|
| Crew | 3 |
|---|
| Combat Weight | 15.4 tons (14 mt) |
|---|
| Ground Pressure | 6.54 psi (0.46 kg/cm²) |
|---|
| Length, Overall |
25.02 ft (7.625 m) |
|---|
| Length, Hull |
22.67 ft (6.91 m) |
|---|
| Width, Overall |
10.3 ft (3.14 m) |
|---|
| Height, Overall |
Early Model: 7.2 ft (2.195 m). Late Model: 7.4 ft (2.255 m) |
|---|
| Ground Clearance | 14.6 in (370 mm) |
|---|
| PERFORMANCE |
|---|
| | PT-76B |
|---|
| Engine | 240 hp (179 kw) diesel |
|---|
| Range | 162 miles (260 km) |
|---|
| Road Speed | 27 mph (44 km/h) |
|---|
| Cross Country Speed | 16 mph (25 km/h) |
|---|

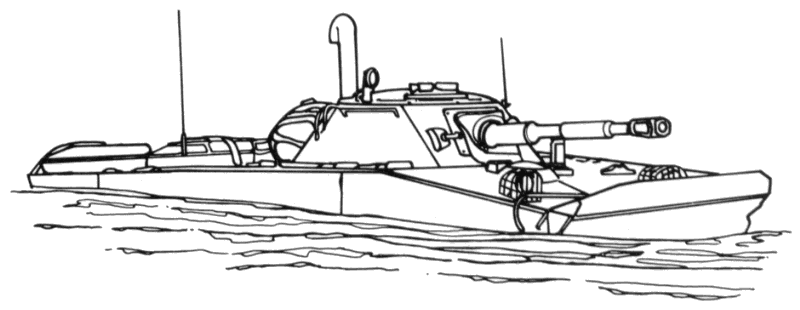

| Swim Speed | 6.2 mph (10 km/h) |
|---|
| Fording Depth | Amphibious |
|---|
| PROTECTION |
|---|
| | PT-76B |
|---|
| Armor | Homogenous, cold rolled steel. Turret front: 0.8 in (20 mm). |
|---|
| Applique Armor | N/A |
|---|
| Explosive Reactive Armor | N/A |
|---|
| Active Protective System | N/A |
|---|
| NBC Protection System | N/A |
|---|
| Smoke Equipment | Vehicle engine exhaust smoke system |
|---|
| ARMAMENT |
|---|
| PT-76B |
|---|
| Type |
Mount |
Typical Ammo Load |
| 76mm D-56B rifled gun |
Turret; manual loading |
40.
HVAP, AP-T, API-T, HEAT, Frag-HE |
| 7.62mm PKT machine gun |
Coaxial to main gun |
1,000 |
|
| FIRE CONTROL |
|---|
| | PT-76B |
|---|
| Fire Control System | ? |
|---|
| Main Gun Stabilization | 2-plane |
|---|
| Rangefinder | N/A |
|---|
| Infrared Searchlight | Available |
|---|
