| GENERAL DATA | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

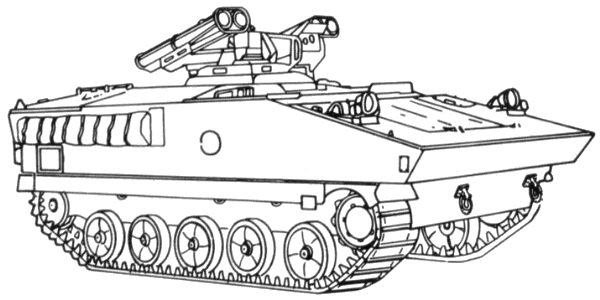

| AMX-10 HOT | ||||||||||
| Country of Origin | France | |||||||||
| Role | Anti-tank vehicle | |||||||||
| Date Of Introduction | ? | |||||||||
| Crew | 4-5 | |||||||||
| Combat Weight | 15.5 tons (14.1 mt) | |||||||||
| Ground Pressure | ? | |||||||||
| Length, Overall | 18.96 ft (5.78 m) | |||||||||
| Width, Overall | 9.12 ft (2.78 m) | |||||||||
| Height, Overall | 8.43 ft (2.57 m) | |||||||||
| PERFORMANCE | ||||||||||
| AMX-10 HOT | ||||||||||
| Engine | 300 hp (224 kw) diesel | |||||||||
| Range | 373 miles (600 km) | |||||||||
| Road Speed | 40 mph (65 km/h) | |||||||||
| Cross Country Speed | 19-25 mph (30-40 km/h) | |||||||||
| Swim Speed | 4 mph (7 km/h) - with optional water jets | |||||||||
| Fording Depth | Amphibious | |||||||||
| PROTECTION | ||||||||||
| AMX-10 HOT | ||||||||||
| Armor | Frontal: Against .50 caliber (12.7 mm) projectiles | |||||||||
| Applique Armor | N/A | |||||||||
| Explosive Reactive Armor | Available. See NOTES | |||||||||
| Active Protective System | N/A | |||||||||
| NBC Protection System | Collective | |||||||||
| Smoke Equipment | Three smoke grenade launchers | |||||||||
| ARMAMENT | ||||||||||
| ||||||||||
| FIRE CONTROL | ||||||||||
| AMX-10 HOT | ||||||||||
| Fire Control System | ? | |||||||||
| Main Gun Stabilization | ? | |||||||||
| Rangefinder | M427 Laser rangefinder | |||||||||
| Infrared Searchlight | ? | |||||||||
