MANGUSTA A129 (AGUSTA)
Gary's Combat Aircraft Reference Guide

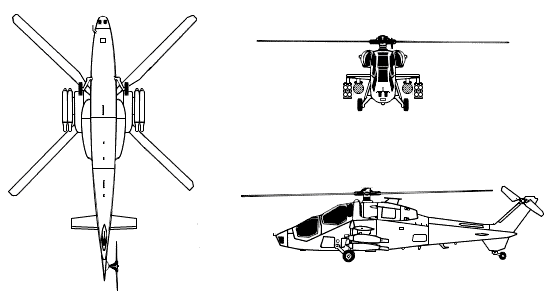

FM 44-80:  Mangusta A129

GENERAL DATA

Country of Origin: Italy.
Similar Aircraft: AH-64 Apache, Mi-28 Havoc, Ka-50 Hokum.
Crew: Two.
Role: Light-attack, antiarmor, scout.
Armament: Gun pods; rockets; missiles; TOW-, Hellfire-, or HOT-capable.
Dimensions: Length: 46 ft, 10 in (14.3 m). Rotor diameter: 39 ft (12 m).

DESCRIPTION

Wings: Four-blade main rotor on top center of cabin. Weapon-carrying wings are short, stubby, and mid-mounted on the fuselage.

Engine(s): Two turboshaft engines mounted alongside the top of the fuselage. Semicircular air intakes.

Fuselage: Slender and tapered to the rear. Tandem cockpit, glassed-in and flat-plated. Tapered from cockpit to blunted nose. Fixed landing gear.

Tail: Boom tapers to the rear. High, swept-back fin with square tip. Flats unequally tapered with square tip. Belly fin with the rear landing wheel attached. Tail rotor on left side.

USER COUNTRY

Italy.

More Mangusta A129 Art

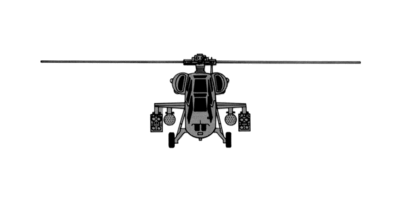

GTA 44-2-18:  Mangusta A129 Front

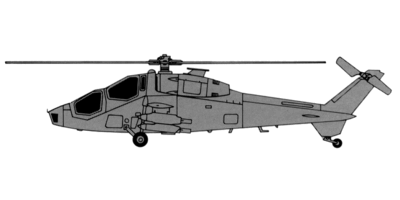

GTA 44-2-18:  Mangusta A129 Side

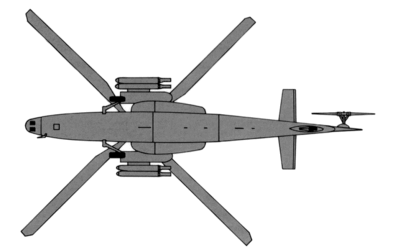

GTA 44-2-18:  Mangusta A129 Bottom
