MIRAGE F1 (DASSAULT-BREGUET)
Gary's Combat Aircraft Reference Guide

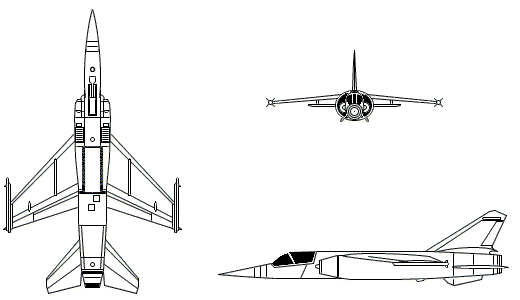

FM 44-80:  Mirage F1

GENERAL DATA

Country of Origin: France.
Similar Aircraft: Super Etendard, Mitsubishi F-1, AV-8B Harrier II, Fantan A.
Crew: One; trainer - two.
Role: Attack, fighter, reconnaissance.
Armament: Two 30-mm cannons, missiles, bombs.
Dimensions: Length: 49 ft (14.94 m). Span: 27 ft, 7 in (8.4 m).

DESCRIPTION

Wings: High-mounted, swept-back, and tapered. Missiles are usually mounted at the wing tips.

Engine(s): One turbojet in the body. Semicircular air intakes alongside the body forward of the wing roots. Single exhaust.

Fuselage: Long, slender, pointed nose and a blunt tail. Two small belly fins under the tail section. Bubble canopy.

Tail: Swept-back and tapered fin with a blunt tip. Flats are mid-mounted on the fuselage, swept-back, and tapered with blunt tips.

USER COUNTRIES

France, Greece, Iran, Iraq, Jordan, Kuwait, Libya, Morocco, Qatar, South Africa, Spain.

More Mirage F1 Art

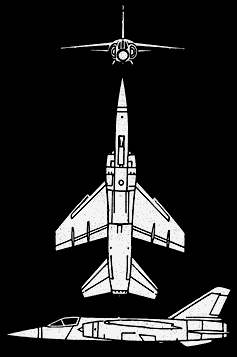

GTA 44-2-10:  Mirage F1
