OV-1 MOHAWK (GRUMMAN)

Gary's Combat Aircraft Reference Guide

Country of Origin: USA.
Similar Aircraft: S-2 Tracker, OV-10 Bronco, An-2 Colt.
Crew: Two.
Role: Battlefield surveillance.
Armament: Normally unarmed (capable of carrying minigun, bombs, and rockets).
Dimensions: Length: 41 ft (12.5 m). Span: 48 ft (14.64 m).

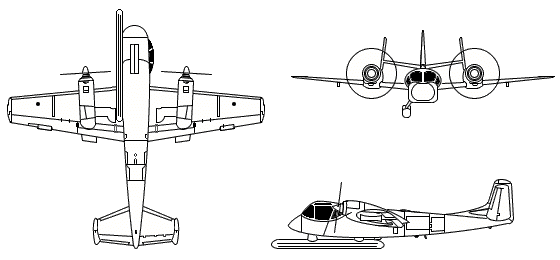

Wings: Mid-mounted and equally tapered with blunt tips. Positive slant.

Engine(s): Two turboprops mounted on top of and extending beyond wings' leading edges.

Fuselage: Club-shaped and tapered to rear section. Blunt nose. Two-seat, stepped-up cockpit. When installed, SLAR is prominently exposed beneath the right side and forward part of the body.

Tail: Triple fins are equally tapered. Outer fins extend above and below the flat. Center fin appears taller. Flats are tapered with a positive slant.

USA.
